| Brand Name : | KYKY |
| Model Number : | 2L-400C |
| Certification : | CE |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 4weeks |

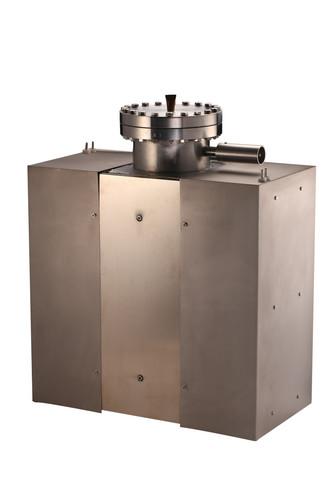

Ion Pump , 2L-400C , DN150CF , 450L/s Air , +5KV
Sputter-ion pump is vacuum generation equipment for obtaining clean and ultra-high vacuum.The sputter-ion pump is main pump of oil less ultra-high vacuum set. The ion pump works in a closed system which doesn't require continuous working backing pump.
Advantages:
1. Cleanness
2. High vacuum degree
3. Zero noise
4. Zero vibration
5. Convenient to operate
Applications:
It can be applied to scientific experiment apparatuses such as high-energy particle accelerator, controlled thermonuclear reaction apparatus, electric vacuum device, semiconductor material, electronic microscope and mass spectrometer, and other industrial equipment requiring ultra-high vacuum.
Specifications:
| Model | 2L-400C | ||
| Flange | DN150CF | ||
| Pumping speed(L/S) | ( air) | 450 | |
| Pumping speed | (Ar) | 4.5 | |
| Start-up pressure (Pa) | ≤5×10-4 | ||
| ultimate pressure (Pa) | 1×10-8 | ||
| (℃)baking temperature | ＜200 | ||
| With magnetic | |||
| Without magnetic | ＜300 | ||
| working voltage(KV) | 5 | ||
| electrode unit | 4 | ||
| dimension(mm) | 200×140(4-M12) | ||
| L*W*H (mm) | 500×265×600 | ||
| (kg) weight | 153 | ||
|
|
